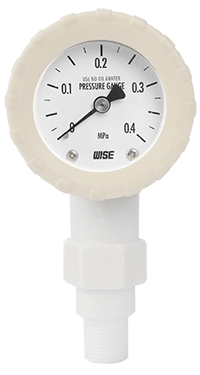

P870 Series_Anti-corrosion pressure gauge

P870 Series

Service intended

P870 series provide a superior chemical resistant and non-viscous pressure gauge which employs fluorine resin for the wetted parts. It can be used with highly corrosive fluids. The case material is PP resin and resistance to corrosive environments.

Nominal diameter 50 mm
Accuracy ±1.5 % of full scale (Only available with 0.6 and 1 MPa)
±2.0 % of full scale
Scale range (MPa, kPa, bar) 0 ~ 0.1 MPa to 0 ~ 1 MPa
Working pressure Steady pressure : 75 % of full scale
Working temperature limits Ambient : 10 ~ 30 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.8 % per 10 ℃ of full scale

Standard features

Pressure connection Fluorine resin (PTFE, PFA)
Element Bellows : Fluorine resin (PFA)
Case and cover PP resin
Window Screw type PET resin
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection ⅜" PT, PF, tube (please consult about other connection)
Treatment Assembly and adjustment : Clean room (Class 10,000)
Treatment : Use no oil and water
Packing : after N2 gas flushing, clean polyethylene hermetical sealed packaging
