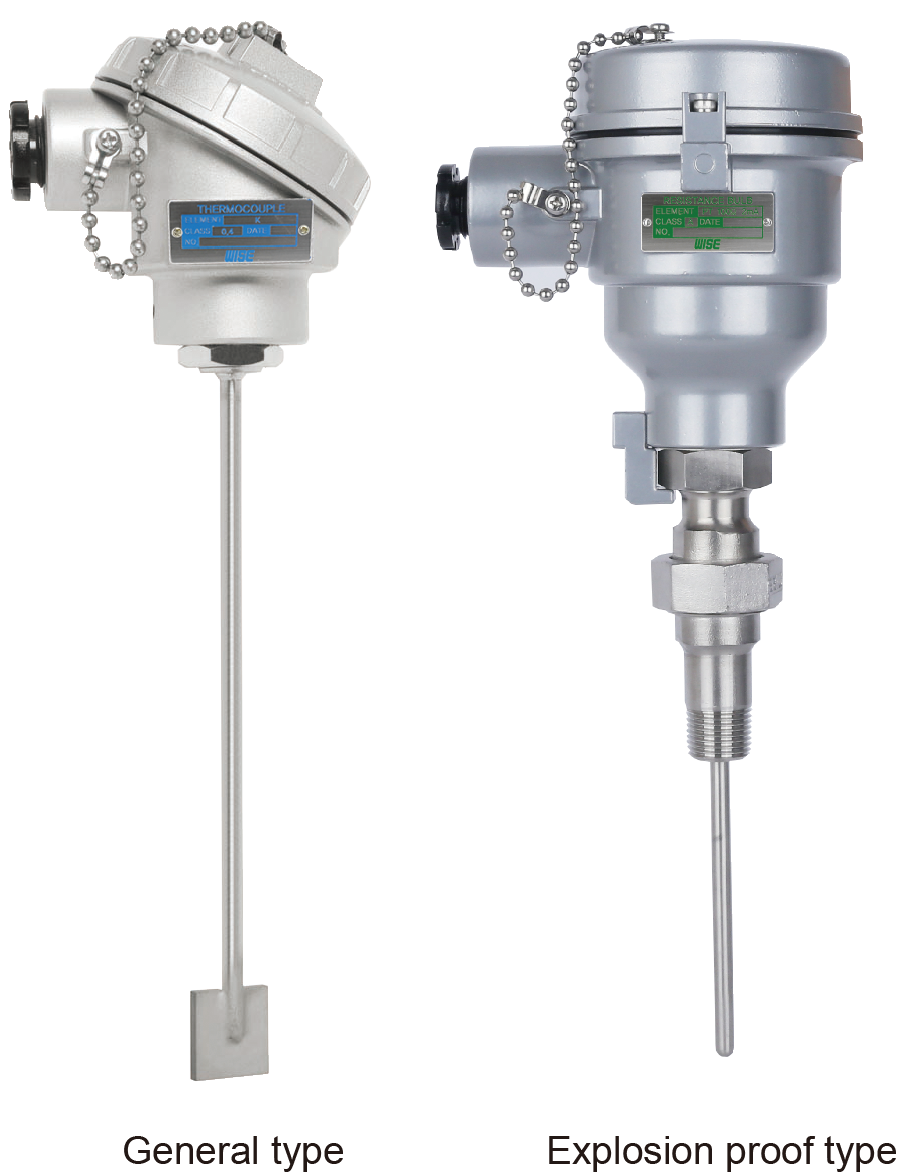

WISE CONTROL INC : R600 Series_Tube skin thermocouple and resistance temperature detector

Service intended

This tube skin temperature sensor is designed to measure the surface temperature of a pipe or a tube used in a boiler, a furnace, a heat exchanger, and a reactor. It is constructed to resist against high temperature and a corrosive agents by tightly attaching the sensor to the measuring area by welding a knife edge pad or a plate weld pad. Furthermore, to protect the pad and the sheath from the heat expansion, it employs a coil shaped design.

Standard features

Element	Thermocouple : K, E, J, T, N R.T.D. : Pt 100Ω at 0 ℃
Tolerances on temperature reading	Class A : ± (0.15 + 0.002 l t l) Class B : ± (0.3 + 0.005 l t l)
Temperature range	Film type element Class A (-30~300 ℃) Class B (-50~500 ℃) Ceramic type element Class A (-100~450 ℃) Class B (-196~600 ℃)
Sheath outer diameter	■ Thermocouple 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0, 9.5 and 12.7 mm * Double element is not available for 1.0 and 1.6 mm sheath outer diameter ■ R.T.D. 3.2, 4.8, 6.4 and 8.0 mm
Head material	ALDC (Standard) 304SS (Not available compact type) 316SS (Not available compact type)
