온도 트랜스미터

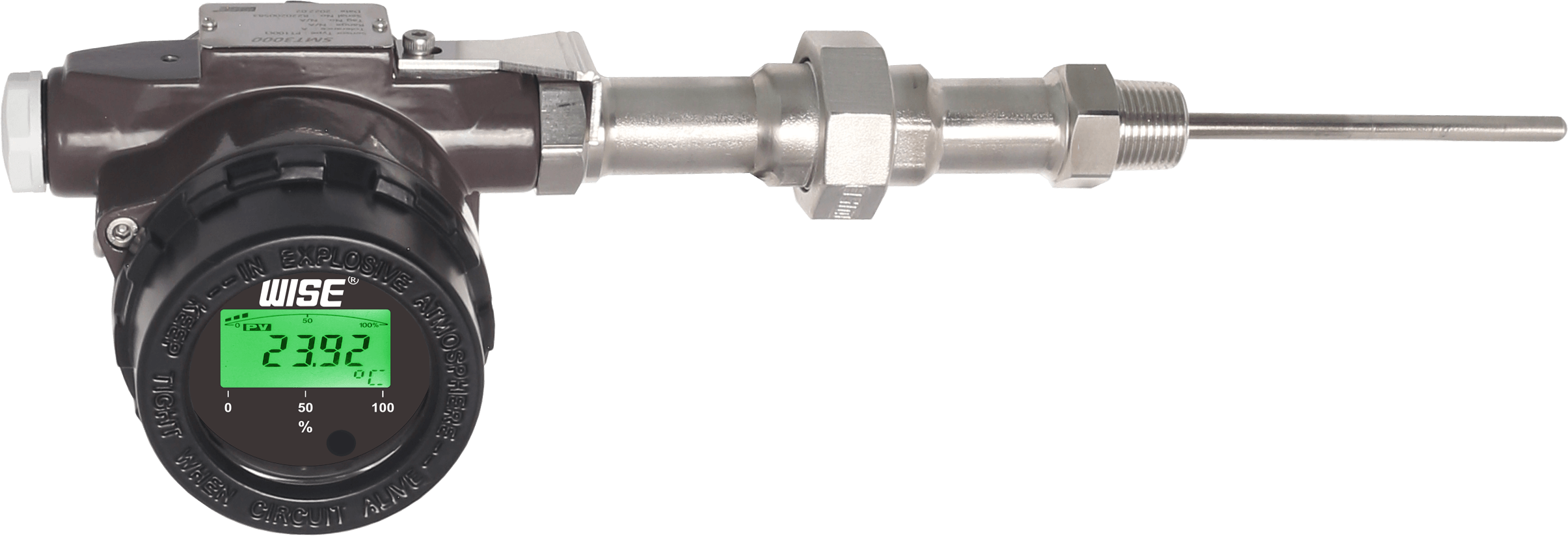

SMT3000_Smart Temperature Transmitter

SMT3000

Service intended

SMT3000 is the high performance temperature transmitter that accepts thermocouple, RTD, ohms or DC milivolts inputs and converts it to a 4 to 20 mA DC signal for transmission. The SMT3000 supports HART protocol.
Reduce complexity and simplify the day-to-day operations of your diverse temperature applications with the versatile SMT3000 of temperature transmitters.



Degree of Protection

EN60529/IEC529/IP66
EN60529/IEC529/IP67



Standard Features

Housing
  • Material: Aluminium
  • Conduit connection

    If you want to apply Conduit 'A' and Conduit 'B' differently,
    you need to use adaptor.
    * NPT 1/2" Adaptor : M20x1.5P(M) - NPT 1/2"(F)
    * M20x1.5P Adaptor : NPT 1/2"(M) - M20x1.5P(F)
Power Supply 10~42 VDC
Input Thermocouple : K, J, T, N, E, B, R, S
RTD : Pt 100 Ω at 0 ºC
Output 4~20 mA with HART Protocol
Display PV : Temperature °C (Standard), °F, °R, K
Current : 4~20 mA
Percent : 0~100 %
The display default setting is PV value.
Measured Value Number Max. 7-digit character string comprising letters
and numbers
Sheath Material RTD : 316L SS
Thermocouple : 316L SS, Inconel 600, 310SS, 446SS,
                          347SS, 321SS
Bracket material 304SS (Standard)
Ambient Temperature Tamb : -40~65 °C, Silicone
Tamb : -20~65 °C, Viton, NBR
Certificates KCs Ex db IIC T6 Gb
CE Conformity EMC Directive EN IEC 61000-6-2
EN IEC 61000-6-4
